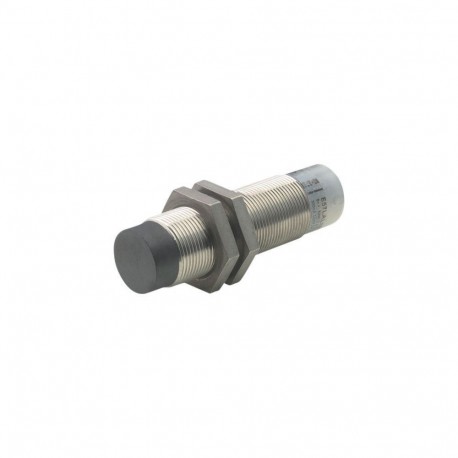

E57SBL18A2EA 136154 Y7-136154 EATON ELECTRIC Proximity switch, inductive, 1 N/C, Sn 8mm, 2L, 40-250VAC, 20-2..
E57SBL18A2EA
136154
Y7-136154
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller E57SBL18A2EA is an inductive proximity switch built for dependable object sensing in factory automation and control applications. Engineers implement proximity switches to detect metal components passing along conveyors, rotary tables, and assembly lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 40 mm
- Diameter sensor (EF007111): 18 mm
- Mechanical mounting condition for sensor (EF004041): Not flat
- Switching distance (EF003647): 8 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Breaker contact
- Type of switching output (EF003962): PNP/NPN
- Type of electric connection (EF003961): Connector M12
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
UL
CSA File No.: 50513
UL File No.: E166051
IEC/EN 60947-5-2
UL Category Control No.: NRKH, NRKH7
CSA Class No.: 3211-03
CSA-C22.2 No. 14
UL 508
CSA
Product specifications
2-wire
NEMA 4X, 6, 13
1 - 200 mA (Ie, 70 °C)
