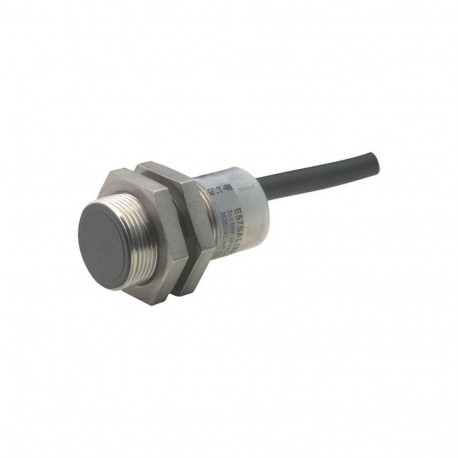

E57SBL18A2 136152 Y7-136152 EATON ELECTRIC Proximity switch, inductive, 1 N/C, Sn 5mm, 2L, 40-250VAC, 20-250..
E57SBL18A2
136152
Y7-136152
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Proximity switch, inductive, 1 N/C, Sn 5mm, 2L, 40-250VAC, 20-250 (E57SBL18A2) serves as a standard non-contact sensing component applied throughout industrial automation setups to detect metallic targets without mechanical friction. These units are commonly mounted near moving parts, gears, and valves to signal position states to PLCs and control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 35 mm
- Diameter sensor (EF007111): 18 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 5 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Breaker contact
- Type of switching output (EF003962): PNP/NPN
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
CSA Class No.: 3211-03
CSA-C22.2 No. 14
IEC/EN 60947-5-2
CSA File No.: 50513
CSA
CE
UL 508
UL File No.: E166051
UL
Product specifications
2 m connection cable
NEMA 4X, 6, 13
5 - 250 mA (Ie, at 25 °C)
