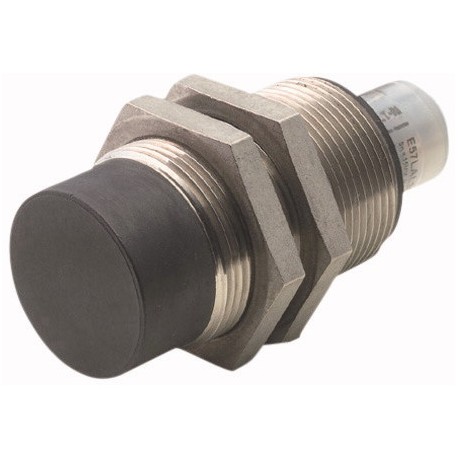

E57SAL30T111ED 136136 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 15mm, 3L, 6-48VDC, PNP, M30, meta..
E57SAL30T111ED
136136
EATON - MOELLER
1 Pcs.
Proximity switch, inductive, 1N/O, Sn=15mm, 3L, 6-48VDC, PNP, M30, metal, M12
Proximity detector. Inductive. 1 NO. Sn=15 mm. 3 L. 6-48 V DC. PNP. M30. Metallic. M12
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Proximity switch, inductive, 1N/O, Sn=15mm, 3L, 6-48VDC, PNP, M30, metal, M12
Eaton Catalog No.
E57SAL30T111ED
Proximity switch, Inductive Sensors, Product range: E57 Premium+ Short-Series, Connection: 3-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 6 - 48 V DC, Type of mounting: Non-flush, Switching type: PNP, Plug-in connection M12 x 1, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2
Delivery program
Basic function
Inductive Sensors
Product range
E57 Premium+ Short-Series
Connection
3-wire
Design (outer dimensions)
M30 x 1.5 mm
Rated operational voltage [Ue]
6 - 48 V DC
Type of mounting
Non-flush
Switching type
PNP
For connection of:
Plug-in connection M12 x 1
Contacts
N/O = Normally open
1 N/O
Material
Stainless steel
Degree of Protection
IP67
Technical data
General
Standards
IEC/EN 60947-5-2
Ambient temperature
-25 - +70
Mechanical shock resistance
30
Shock duration 11 ms g
Shock duration 11 ms g
Degree of Protection
IP67
Characteristics
Repetition accuracy of Sn
3 %
Temperature drift of Sn
10 %
Switching hysteresis of Sn
15 %
Rated operational voltage [Ue]
6 - 48 V DC
Maximum load current [Ie]
< 500 (6 - 32 V DC) / 250 (32 - 48 V DC) mA
Voltage drop at Ie[Ud]
12 V
Switching Frequency
300 Hz
Min. load current [Ie]
5 mA
Residual current through the load in the blocked state at 230 V AC and 24 V DC [Ir]
2 mA
Switching state display
Red LED
Connection
3-wire
ContactsN/O = Normally open
1 N/O
StyleDesign (outer dimensions)
M30 x 1.5 mm
For connection of:
Plug-in connection M12 x 1
Material
Stainless steel
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Proximity switch / Inductive proximity switch ([email protected] [AGZ376015])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
50 mm
Diameter sensor
30 mm
Mechanical mounting condition for sensor
Not flat
Switching distance
15 mm
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
PNP
Type of electric connection
Plug-in connection M12
Type of electric connection
Connector M12
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
6 - 48 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
6 - 48 V
Voltage type
DC
Voltage type
DC
Switching frequency
300 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields
-
Approvals
Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.
E166051
UL Category Control No.
NRKH, NRKH7
CSA File No.
50513
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Max. Voltage Rating
250 V AC, 250 V DC
Degree of Protection
IEC: IP67; UL/CSA Type: 4, 4x, 6, 6P, 12, 13
