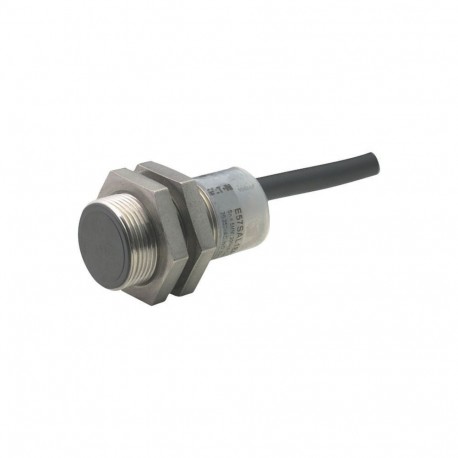

E57SAL18A4 136110 Y7-136110 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 5mm, 2L, 20-250VAC, M18, me..
E57SAL18A4
136110
Y7-136110
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number E57SAL18A4 is an inductive proximity switch providing accurate position feedback for metallic workpieces and machine parts. These units are commonly mounted in harsh factory environments to automate sorting, counting, and sequential process steps.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 64 mm
- Diameter sensor (EF007111): 18 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 5 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Normally open contact
- Type of switching output (EF003962): 2-wire
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
UL Category Control No.: NRKH, NRKH7
CSA Class No.: 3211-03
CSA-C22.2 No. 14
UL File No.: E166051
CSA File No.: 50513
CSA
UL 508
IEC/EN 60947-5-2
UL
Product specifications
2 m connection cable
NEMA 4X, 6, 13
1 - 250 mA (Ie, 70 °C)
