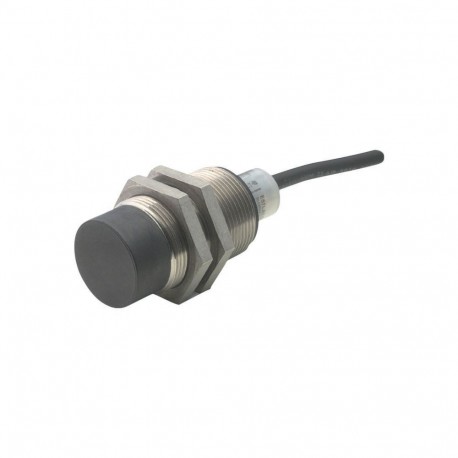

EATON - MOELLER E57LAL30A2E E57LAL30A2E 136019 Y7-136019 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 15mm, 2L, 20-250VAC, M30, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E57LAL30A2E 136019 Y7-136019 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 15mm, 2L, 20-250VAC, M30, ..

E57LAL30A2E

136019

Y7-136019

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O, Sn=15mm, 2L, 20-250VAC, M30, metal, line 2m E57LAL30A2E Proximity switch, E57 Premium+ Series, 1 N/O, 2-wire, 20 - 250 V AC, M30 x 1.5 mm, Sn= 15 mm, Non-flush, Stainless steel, 2 m connection cable Proximity switch, Inductive Sensors, Product range: E57 Premium+ Series, Connection: 2-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 20 - 250 V AC, Rated switching distance: Sn= 15 mm, Type of mounting: Non-flush, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series E57 Proximity switch
Catalog Number
136019
Model Code
E57LAL30A2E
EAN
4015081328123
Product Length/Depth
157.48 mm
Product Height
45.72 mm
Product Width
129.54 mm
Product Weight
0.23 kg
Certifications
UL File No.: E166051
IEC/EN 60947-5-2
UL 508
UL Category Control No.: NRKH, NRKH7
CE
CSA
CSA File No.: 50513
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14

Product specifications

Type
Inductive sensor
Electric connection type
Cable
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
30 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
10 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
250 V
Voltage type
AC
Mounting method
Non-flush mounting
Material
Stainless steel
Connection type
2 m connection cable
2-wire
Installation type
Not flat
Degree of protection
IP67
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Switch function type
Normally open contact
Load current
1 - 250 mA (Ie, 70 °C)
1 - 500 mA (Ie, at 25 °C)
Residual current
0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
20 Hz
Voltage rating - max
250 V
Width sensor
0 mm
Product category
E57 Premium+ Series
Switching output type
Two-wire
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
20 V
Rated control supply voltage (Us) at AC, 60 Hz - max
250 V
Rated control supply voltage (Us) at AC, 60 Hz - min
20 V
Rated control supply voltage (Us) at DC - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated switching distance (Sn) - max
15 mm
Repeatability
3 %
Sensor height
0 mm
Sensor length
69 mm
Supply voltage - max
250 V
Supply voltage - min
20 V
Switching hysteresis of Sn
20 %
Voltage drop (Ud)
2.5 V

ETIM for 136019 Sensors (EC002714)
Feature Name Feature Value
Width sensor (EF007094) 0 mm
Height of sensor (EF007283) 0 mm
Length of sensor (EF007334) 69 mm
Diameter sensor (EF007111) 30 mm
Mechanical mounting condition for sensor (EF004041) Not flat
Switching distance (EF003647) 15 mm
Suitable for safety functions (EF001597) No
Type of switch function (EF003963) Normally open contact
Type of switching output (EF003962) 2-wire
Type of electric connection (EF003961) Cable
Number of semiconductor outputs with signalling function (EF003945) 1
Number of contact energized outputs with signalling function (EF003946) 0
Number of protected semiconductor outputs (EF003951) 0
Number of protected contact energized outputs (EF003952) 0
Type of actuation (EF006949) Metallic Target
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cylinder, screw-thread
Coating housing (EF001601) Other
Cascadable (EF000507) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Max. output current at protected output (EF004035) 0 mA
Supply voltage (EF004127) 20 V
Rated control supply voltage AC 50 Hz (EF003978) 20 V
Rated control supply voltage AC 60 Hz (EF003979) 20 V
Rated control supply voltage DC (EF003980) 0 V
Voltage type (EF000187) AC
Switching frequency (EF003587) 20 Hz
With monitoring function downstream switching devices (EF004052) No
Housing material (EF001596) Metal
Compression-resistant (EF007106) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Degree of protection (NEMA) (EF011959) 4X, 6, 13
