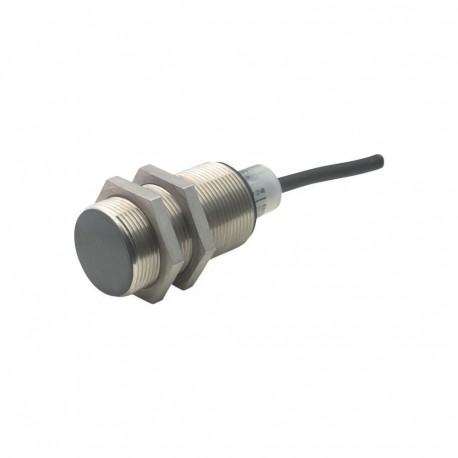

E57LAL30A2 136018 Y7-136018 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 10mm, 2L, 20-250VAC, M30, m..
E57LAL30A2
136018
Y7-136018
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller E57LAL30A2 inductive proximity switch is a non-contact sensing device engineered to detect metallic targets in automated industrial machinery and production lines. These sensors operate by generating an electromagnetic field, registering interruptions when metal objects enter the established sensing range, and relaying binary switching signals to controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 69 mm
- Diameter sensor (EF007111): 30 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 10 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Normally open contact
- Type of switching output (EF003962): 2-wire
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
CSA File No.: 50513
UL Category Control No.: NRKH, NRKH7
UL File No.: E166051
UL
CSA
IEC/EN 60947-5-2
UL 508
CE
CSA Class No.: 3211-03
Product specifications
2 m connection cable
NEMA 4X, 6, 13
1 - 500 mA (Ie, at 25 °C)
