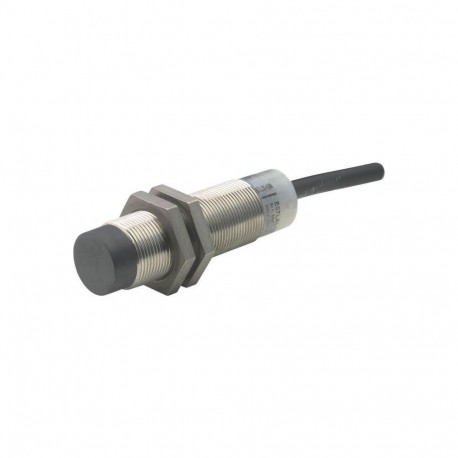

EATON - MOELLER E57LAL18A2E E57LAL18A2E 136008 Y7-136008 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 8mm, 2L, 20-250VAC, M18, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E57LAL18A2E 136008 Y7-136008 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 8mm, 2L, 20-250VAC, M18, m..

E57LAL18A2E

136008

Y7-136008

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O, Sn=8mm, 2L, 20-250VAC, M18, metal, line 2m E57LAL18A2E Proximity switch, E57 Premium+ Series, 1 N/O, 2-wire, 20 - 250 V AC, M18 x 1 mm, Sn= 8 mm, Non-flush, Stainless steel, 2 m connection cable Proximity switch, Inductive Sensors, Product range: E57 Premium+ Series, Connection: 2-wire, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 20 - 250 V AC, Rated switching distance: Sn= 8 mm, Type of mounting: Non-flush, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Proximity switch, inductive, 1N/O, Sn 8mm, 2L, 20-250VAC, M18, m.. manufactured by Eaton Moeller as E57LAL18A2E detects metal workpieces in industrial automation systems without mechanical contact. AC-switching inductive sensors of this type are widely utilized to manage sequencing, limit travel, and verify part presence in heavy plant equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 66 mm
  • Diameter sensor (EF007111): 18 mm
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Switching distance (EF003647): 8 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Normally open contact
  • Type of switching output (EF003962): 2-wire
  • Type of electric connection (EF003961): Cable
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲

General specifications

Product Name
Eaton Moeller® series E57 Proximity switch
Catalog Number
136008
Model Code
E57LAL18A2E
EAN
4015081328017
Product Length/Depth
158.75 mm
Product Height
50.8 mm
Product Width
133.35 mm
Product Weight
0.32 kg
Certifications
CSA Class No.: 3211-03
CE
IEC/EN 60947-5-2
UL Category Control No.: NRKH, NRKH7
CSA-C22.2 No. 14
UL
UL 508
CSA File No.: 50513
UL File No.: E166051
CSA

Product specifications

Type
Inductive sensor
Electric connection type
Cable
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
18 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
10 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
250 V
Voltage type
AC
Mounting method
Non-flush mounting
Material
Stainless steel
Connection type
2 m connection cable
2-wire
Installation type
Not flat
Degree of protection
IP67
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Switch function type
Normally open contact
Load current
1 - 500 mA (Ie, at 25 °C)
1 - 250 mA (Ie, 70 °C)
Residual current
0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
20 Hz
Voltage rating - max
250 V
Width sensor
0 mm
Product category
E57 Premium+ Series
Switching output type
Two-wire
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
20 V
Rated control supply voltage (Us) at AC, 60 Hz - max
250 V
Rated control supply voltage (Us) at AC, 60 Hz - min
20 V
Rated control supply voltage (Us) at DC - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated switching distance (Sn) - max
8 mm
Repeatability
3 %
Sensor height
0 mm
Sensor length
66 mm
Supply voltage - max
250 V
Supply voltage - min
20 V
Switching hysteresis of Sn
20 %
Voltage drop (Ud)
2.5 V
