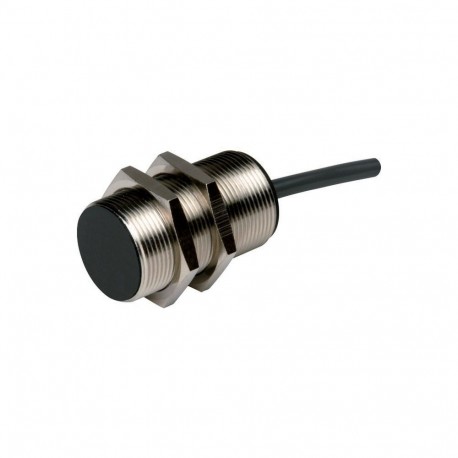

E57-30GS10-C 135971 Y7-135971 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 10mm, 3L, 10-30VDC, NPN, ..
E57-30GS10-C
135971
Y7-135971
EATON - MOELLER
1 Pcs.
Proximity switch, inductive, 1N/O, Sn=10mm, 3L, 10-30VDC, NPN, M30, metal, line 2m
E57-30GS10-C
Proximity switch, E57 Global Series, 1 N/O, 3-wire, 10 - 30 V DC, M30 x 1.5 mm, Sn= 10 mm, Flush, NPN, Metal, 2 m connection cable
Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 3-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 10 - 30 V DC, Rated switching distance: Sn= 10 mm, Type of mounting: Flush, Switching type: NPN, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Metal, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller E57-30GS10-C proximity switch, inductive, 1N/O, Sn 10mm, 3L, 10-30VDC, NPN, .. offers dependable presence detection for metallic parts within automated industrial infrastructure. Facilities rely on inductive proximity switches for continuous operation in material handling, assembly systems, and machine tooling. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 55 mm
- Diameter sensor (EF007111): 30 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 10 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Normally open contact
- Type of switching output (EF003962): NPN
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲Proximity switch, E57 Global Series, 1 N/O, 3-wire, 10 - 30 V DC, M30 x 1.5 mm, Sn= 10 mm, Flush, NPN, Metal, 2 m connection cable
Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 3-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 10 - 30 V DC, Rated switching distance: Sn= 10 mm, Type of mounting: Flush, Switching type: NPN, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Metal, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2
Delivery program
Basic function
Inductive Sensors
Product range
E57 Global Series
Connection
3-wire
Design (outer dimensions)
M30 x 1.5 mm
Rated operational voltage [Ue]
10 - 30 V DC
Rated switching distance [Sn]
10 mm
Type of mounting
Flush
Switching type
NPN
For connection of:
2 m connection cable
Contacts
N/O = Normally open
1 N/O
Material
Metal
Degree of Protection
IP67, IP69
Technical data
General
Standards
IEC/EN 60947-5-2
Ambient temperature
-25 - +70
Mechanical shock resistance
30
Shock duration 11 ms g
Shock duration 11 ms g
Degree of Protection
IP67, IP69
Characteristics
Rated switching distanceRated switching distance [Sn]
10 mm
Repetition accuracy of Sn
1 %
Temperature drift of Sn
10 %
Switching hysteresis of Sn
15 %
Rated operational voltage [Ue]
10 - 30 V DC
Residual ripple of Ue
10 %
Maximum load current [Ie]
< 100 mA
Operating current in the switched state at 24 V DC [Ib]
10 mA
Voltage drop at Ie[Ud]
1.5 V
Switching Frequency
500 Hz
Residual current through the load in the blocked state at 230 V AC and 24 V DC [Ir]
0.01 mA
Switching state display
Red LED
Protective functions
Short-circuit protective device
Protection against polarity reversal
Protection against wire breakage
Protection against polarity reversal
Protection against wire breakage
Connection
3-wire
ContactsN/O = Normally open
1 N/O
StyleDesign (outer dimensions)
M30 x 1.5 mm
For connection of:
2 m connection cable
Material
Metal
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Proximity switch / Inductive proximity switch ([email protected] [AGZ376015])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
55 mm
Diameter sensor
30 mm
Mechanical mounting condition for sensor
Concise
Switching distance
10 mm
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
NPN
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
10 - 30 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
10 - 30 V
Voltage type
DC
Switching frequency
500 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields
Approvals
Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.
CSA report applies to both Canada and US
UL Category Control No.
–
CSA File No.
224447
CSA Class No.
4652-04 / 4652-84
North America Certification
CSA certified, certified by CSA for use in the US
Max. Voltage Rating
30 V DC
Degree of Protection
IEC: IP67, IP69K; UL/CSA Type: -
