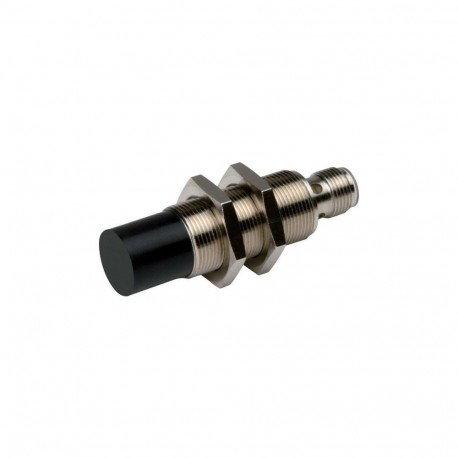

E57-18GU08-GDB 135940 Y7-135940 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 8mm, 3L, 10-30VDC, PNP,..

E57-18GU08-GDB

135940

Y7-135940

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O, Sn=8mm, 3L, 10-30VDC, PNP, M18, metal, M12 E57-18GU08-GDB Proximity switch, E57 Global Series, 1 N/O, 3-wire, 10 - 30 V DC, M18 x 1 mm, Sn= 8 mm, Non-flush, PNP, Metal, Plug-in connection M12 x 1 Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 3-wire, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 10 - 30 V DC, Rated switching distance: Sn= 8 mm, Type of mounting: Non-flush, Switching type: PNP, Plug-in connection M12 x 1, Contacts N/O = Normally open: 1 N/O, Material: Metal, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller proximity switch, inductive, 1N/O, Sn 8mm, 3L, 10-30VDC, PNP,.. provides dependable non-contact object detection for automated industrial systems and heavy machinery. These versatile cylindrical sensors generate precise electrical signals upon encountering metal parts, facilitating seamless integration with programmable controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 80 mm
  • Diameter sensor (EF007111): 18 mm
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Switching distance (EF003647): 8 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Normally open contact
  • Type of switching output (EF003962): PNP
  • Type of electric connection (EF003961): Connector M12
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲

General specifications

Product Name
Eaton Moeller® series E57 Proximity switch
Catalog Number
135940
Model Code
E57-18GU08-GDB
EAN
4015081327331
Product Length/Depth
152.4 mm
Product Height
44.45 mm
Product Width
152.4 mm
Product Weight
0.23 kg
Certifications
CSA Class No.: 4652-04 / 4652-84
IEC/EN 60947-5-2
CSA-C22.2 No. 14
UL File No.: CSA report applies to both US and Canada
CE
CSA File No.: 224447
CSA
UL 508

Product specifications

Type
Inductive sensor
Electric connection type
Connector M12
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
18 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
20 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Functions
Short-circuit protection
Protection against polarity reversal
Protection against wire breakage
Voltage type
DC
Mounting method
Non-flush mounting
Material
Metal
Connection type
Plug-in connection M12 x 1
3-wire
Installation type
Not flat
Degree of protection
IP67
IP69
NEMA Other
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Switch function type
Normally open contact
Load current
Max. 100 mA (Ie)
Residual current
0.01 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Residual ripple
10 % (Uₑ)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
500 Hz
Voltage rating - max
30 V
Width sensor
0 mm
Product category
E57 Global Series
Switching output type
PNP
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
10 V
Rated switching distance (Sn) - max
8 mm
Repeatability
1 %
Sensor height
0 mm
Sensor length
80 mm
Supply voltage - max
30 V
Supply voltage - min
10 V
Switching hysteresis of Sn
15 %
Voltage drop (Ud)
1.5 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
