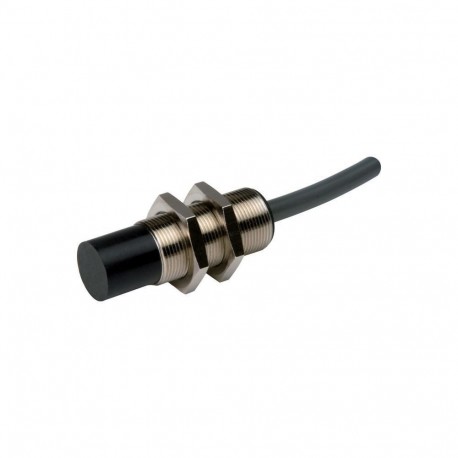

EATON - MOELLER E57-18GU08-A E57-18GU08-A 135933 Y7-135933 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 8mm, 2L, 20-250VAC, M18, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E57-18GU08-A 135933 Y7-135933 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 8mm, 2L, 20-250VAC, M18, ..

E57-18GU08-A

135933

Y7-135933

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O, Sn=8mm, 2L, 20-250VAC, M18, metal, line 2m E57-18GU08-A Proximity switch, E57 Global Series, 1 N/O, 2-wire, 20 - 250 V AC, M18 x 1 mm, Sn= 8 mm, Non-flush, Metal, 2 m connection cable Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 2-wire, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 20 - 250 V AC, Rated switching distance: Sn= 8 mm, Type of mounting: Non-flush, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Metal, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller proximity switch, inductive, 1N/O, Sn 8mm, 2L, 20-250VAC, M18, .. (E57-18GU08-A) functions as a non-contact sensing device utilized across industrial machinery to detect metallic targets. These sensors monitor position, track cycles, and confirm component locations within automated production lines without physical wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 80 mm
  • Diameter sensor (EF007111): 18 mm
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Switching distance (EF003647): 8 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Normally open contact
  • Type of switching output (EF003962): 2-wire
  • Type of electric connection (EF003961): Cable
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲
Proximity switch, E57 Global Series, 1 N/O, 2-wire, 20 - 250 V AC, M18 x 1 mm, Sn= 8 mm, Non-flush, Metal, 2 m connection cable
Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 2-wire, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 20 - 250 V AC, Rated switching distance: Sn= 8 mm, Type of mounting: Non-flush, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Metal, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Delivery program

Basic function
Inductive Sensors
Product range
E57 Global Series
Connection
2-wire
Design (outer dimensions)
M18 x 1 mm
Rated operational voltage [Ue]
20 - 250 V AC
Rated switching distance [Sn]
8 mm
Type of mounting
Non-flush
For connection of:
2 m connection cable
Contacts
N/O = Normally open
1 N/O
Material
Metal
Degree of Protection
IP67, IP69

Technical data

General
Standards
IEC/EN 60947-5-2
Ambient temperature
-25 - +70
Mechanical shock resistance
30
Shock duration 11 ms g
Degree of Protection
IP67, IP69
Characteristics
Rated switching distanceRated switching distance [Sn]
8 mm
Repetition accuracy of Sn
3 %
Temperature drift of Sn
10 %
Switching hysteresis of Sn
15 %
Rated operational voltage [Ue]
20 - 250 V AC
Maximum load current [Ie]
< 200 mA
Voltage drop at Ie[Ud]
8 V
Switching Frequency
25 Hz
Min. load current [Ie]
5 mA
Residual current through the load in the blocked state at 230 V AC and 24 V DC [Ir]
1.8 mA
Switching state display
Red LED
Connection
2-wire
ContactsN/O = Normally open
1 N/O
StyleDesign (outer dimensions)
M18 x 1 mm
For connection of:
2 m connection cable
Material
Metal

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Proximity switch / Inductive proximity switch ([email protected] [AGZ376015])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
80 mm
Diameter sensor
18 mm
Mechanical mounting condition for sensor
Not flat
Switching distance
8 mm
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
Two-wire
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
20 - 250 V
Rated control supply voltage Us at AC 50HZ
20 - 250 V
Rated control supply voltage Us at AC 60HZ
20 - 250 V
Rated control supply voltage Us at DC
0 - 0 V
Voltage type
AC
Switching frequency
25 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.
CSA report applies to both Canada and US
UL Category Control No.
–
CSA File No.
224447
CSA Class No.
4652-04 / 4652-84
North America Certification
CSA certified, certified by CSA for use in the US
Max. Voltage Rating
250 V AC
Degree of Protection
IEC: IP67, IP69K; UL/CSA Type: -

Dimensions
