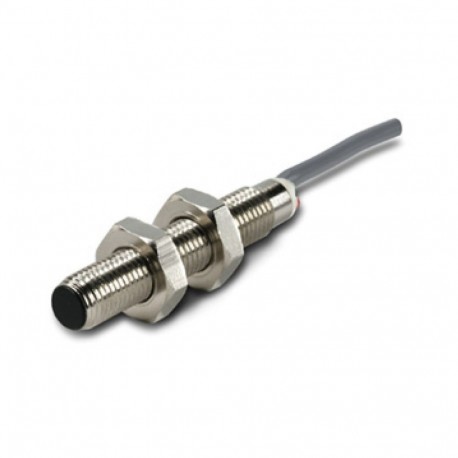

EATON - MOELLER E57-08GS01-G E57-08GS01-G 135861 Y7-135861 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 1mm, 3L, 10-30VDC, PNP, M.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E57-08GS01-G 135861 Y7-135861 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 1mm, 3L, 10-30VDC, PNP, M..

E57-08GS01-G

135861

Y7-135861

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O, Sn=1mm, 3L, 10-30VDC, PNP, M8, metal, line 2m E57-08GS01-G Proximity switch, E57 Global Series, 1 N/O, 3-wire, 10 - 30 V DC, M8 x 1 mm, Sn= 1 mm, Flush, PNP, Stainless steel, 2 m connection cable Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 3-wire, Design (outer dimensions): M8 x 1 mm, Rated operational voltage: Ue= 10 - 30 V DC, Rated switching distance: Sn= 1 mm, Type of mounting: Flush, Switching type: PNP, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller proximity switch, inductive is widely used across industrial infrastructure to monitor target presence, detect machine component positions, and regulate automated processes. The non-contact operating principle ensures high switching frequencies and long-term reliability even in harsh environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 46 mm
  • Diameter sensor (EF007111): 8 mm
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Switching distance (EF003647): 1 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Normally open contact
  • Type of switching output (EF003962): PNP
  • Type of electric connection (EF003961): Cable
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲
Proximity switch, E57 Global Series, 1 N/O, 3-wire, 10 - 30 V DC, M8 x 1 mm, Sn= 1 mm, Flush, PNP, Stainless steel, 2 m connection cable
Proximity switch, Inductive Sensors, Product range: E57 Global Series, Connection: 3-wire, Design (outer dimensions): M8 x 1 mm, Rated operational voltage: Ue= 10 - 30 V DC, Rated switching distance: Sn= 1 mm, Type of mounting: Flush, Switching type: PNP, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Delivery program

Basic function
Inductive Sensors
Product range
E57 Global Series
Connection
3-wire
Design (outer dimensions)
M8 x 1 mm
Rated operational voltage [Ue]
10 - 30 V DC
Rated switching distance [Sn]
1 mm
Type of mounting
Flush
Switching type
PNP
For connection of:
2 m connection cable
Contacts
N/O = Normally open
1 N/O
Material
Stainless steel
Degree of Protection
IP67, IP69

Technical data

General
Standards
IEC/EN 60947-5-2
Ambient temperature
-25 - +70
Mechanical shock resistance
30
Shock duration 11 ms g
Degree of Protection
IP67, IP69
Characteristics
Rated switching distanceRated switching distance [Sn]
1 mm
Repetition accuracy of Sn
1 %
Temperature drift of Sn
10 %
Switching hysteresis of Sn
15 %
Rated operational voltage [Ue]
10 - 30 V DC
Residual ripple of Ue
10 %
Maximum load current [Ie]
< 100 mA
Operating current in the switched state at 24 V DC [Ib]
10 mA
Voltage drop at Ie[Ud]
1.5 V
Switching Frequency
2000 Hz
Residual current through the load in the blocked state at 230 V AC and 24 V DC [Ir]
0.01 mA
Switching state display
Red LED
Protective functions
Short-circuit protective device
Protection against polarity reversal
Protection against wire breakage
Connection
3-wire
ContactsN/O = Normally open
1 N/O
StyleDesign (outer dimensions)
M8 x 1 mm
For connection of:
2 m connection cable
Material
Stainless steel

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Proximity switch / Inductive proximity switch ([email protected] [AGZ376015])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
46 mm
Diameter sensor
8 mm
Mechanical mounting condition for sensor
Concise
Switching distance
1 mm
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
PNP
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
10 - 30 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
10 - 30 V
Voltage type
DC
Switching frequency
2000 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.
CSA report applies to both Canada and US
UL Category Control No.
–
CSA File No.
224447
CSA Class No.
4652-04 / 4652-84
North America Certification
CSA certified, certified by CSA for use in the US
Max. Voltage Rating
30 V DC
Degree of Protection
IEC: IP67, IP69K; UL/CSA Type: -

Dimensions
