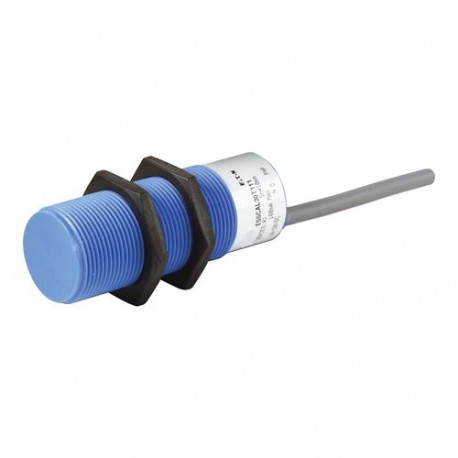

E55CAL30T110 135830 Y7-135830 EATON ELECTRIC Proximity switch, inductive, 1N/O, Sn 10mm, 3L, 10-30VDC, NPN, ..
E55CAL30T110
135830
Y7-135830
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller E55CAL30T110 is an inductive proximity switch engineered for non-contact object detection in automated industrial processes. This component type is commonly integrated into machinery to monitor mechanical positioning, count moving elements, and detect travel endpoints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 80 mm
- Diameter sensor (EF007111): 30 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 10 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Normally open contact
- Type of switching output (EF003962): NPN
- Type of electric connection (EF003961): Cable
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
IEC/EN 60947-5-2
Product specifications
Short-circuit protection
3-wire
NEMA 4X, 13
60 Hz, Input, max. Range
