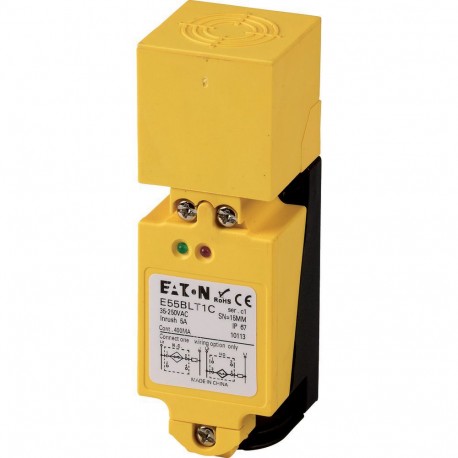

Proximity switch, inductive, 1N/O/1N/C, Sn=40mm, 2L, 35-250VAC, quad.40, insulated material, screw connection E55BLT1F Eaton Moeller® series E55 Proximity switch, inductive, 1N/O/1N/C, Sn=40mm, 2L, 35-250VAC, quad.40, insulated material, screw connection Proximity switch, Inductive Sensors, Product range: E55 Limit Switch Style Series, Connection: 2-wire, Design (outer dimensions): 50 x 50 x 128 mm, Rated operational voltage: Ue= 35 - 250 V AC, Rated switching distance: Sn= 40 mm, Type of mounting: Non-flush, Screw terminal, Contacts P = Normally closed/Normally open contact, programmable: 1 P, Material: Insulated material, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller E55BLT1F inductive proximity switch offers robust non-contact target detection designed for heavy-duty industrial switching applications. Facilities management and automation engineers use these cuboid switches to monitor large moving machinery elements, gates, and material handling systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 50 mm
  • Height of sensor (EF007283): 50 mm
  • Length of sensor (EF007334): 128 mm
  • Diameter sensor (EF007111): 0 mm
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Switching distance (EF003647): 40 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Programmable/configurable
  • Type of switching output (EF003962): 2-wire
  • Type of electric connection (EF003961): Clamp
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cuboid
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲

General specifications

Product Name
Eaton Moeller® series E55 Proximity switch
Catalog Number
135815
Model Code
E55BLT1F
EAN
4015081326082
Product Length/Depth
139.7 mm
Product Height
63.5 mm
Product Width
88.9 mm
Product Weight
0.23 kg
Certifications
CE
IEC/EN 60947-5-2

Product specifications

Type
Inductive sensor
Electric connection type
Clamp
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Plastic
Enclosure type
Cuboid
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
0 mm
Number of contact energized outputs with signalling function
0
Number of contacts (programmable)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
3 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
250 V
Functions
Protection against polarity reversal
Protection against wire breakage
Short-circuit protection
Voltage type
AC
Mounting method
Non-flush mounting
Material
Insulated material
Connection type
Screw terminal
2-wire
Installation type
Not flat
Degree of protection
IP67
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Status indication of Operating voltage: Green LED
Switch function type
Programmable/configurable
Load current
Max. 400 mA (Ie)
Residual current
1.8 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Residual ripple
10 % (Uₑ)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Supply frequency
50 Hz, Input, min. Range
60 Hz, Input, max. Range
Switching frequency
25 Hz
Voltage rating - max
250 V
Width sensor
50 mm
Product category
E55 Limit Switch Style Series
Switching output type
Two-wire
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
35 V
Rated control supply voltage (Us) at AC, 60 Hz - max
250 V
Rated control supply voltage (Us) at AC, 60 Hz - min
35 V
Rated control supply voltage (Us) at DC - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated switching distance (Sn) - max
40 mm
Repeatability
10 %
Sensor height
50 mm
Sensor length
128 mm
Supply voltage - max
250 V
Supply voltage - min
35 V
Switching hysteresis of Sn
20 %
Voltage drop (Ud)
8 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
