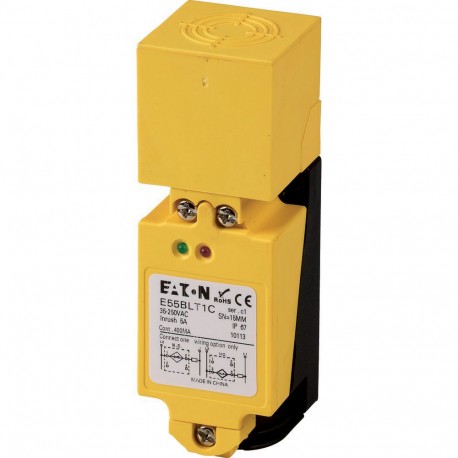

E55BLT1C 135812 Y7-135812 EATON ELECTRIC Proximity switch, inductive, 1N/O/1N/C, Sn 15mm, 2L, 35-250VAC, qua..
E55BLT1C
135812
Y7-135812
EATON - MOELLER
1 Pcs.
Automation > Inductive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller E55BLT1C is a cuboid inductive proximity switch engineered to sense metallic presence without physical contact in automated systems. These sensors are frequently implemented in processing plants to monitor machine parts and control operational sequences.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 40 mm
- Height of sensor (EF007283): 40 mm
- Length of sensor (EF007334): 118 mm
- Diameter sensor (EF007111): 0 mm
- Mechanical mounting condition for sensor (EF004041): Concise
- Switching distance (EF003647): 15 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Programmable/configurable
- Type of switching output (EF003962): 2-wire
- Type of electric connection (EF003961): Clamp
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Type of actuation (EF006949): Metallic Target
- Construction type housing (EF004008): Cuboid
- Cascadable (EF000507): No Max. output current at protected output (EF004035): 0 mA
More info
▲General specifications
IEC/EN 60947-5-2
Product specifications
Protection against polarity reversal
Short-circuit protection
Screw terminal
NEMA 4X, 6, 13
Status indication of Operating voltage: Green LED
60 Hz, Input, max. Range
