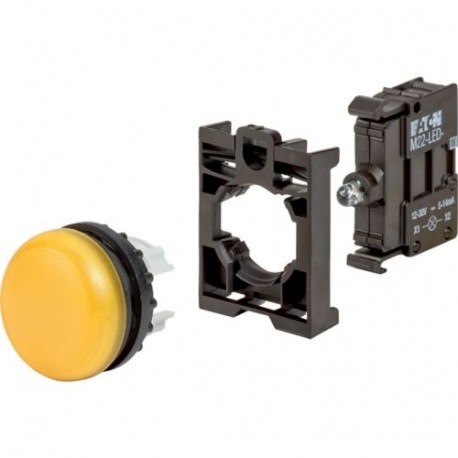

EATON - MOELLER M22-L-Y-LED230-BVP M22-L-Y-LED230-BVP 132602 Y7-132602 EATON ELECTRIC Indicator light, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-L-Y-LED230-BVP 132602 Y7-132602 EATON ELECTRIC Indicator light, complete device

M22-L-Y-LED230-BVP

132602

Y7-132602

EATON - MOELLER

1 Pcs.

Indicator light, complete device M22-L-Y-LED230-BVP Eaton Moeller® series M22 Indicator light, complete device M22-L-Y-LED230-BVP, Blister pack for hanging Indicator light, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-L-Y-LED230-BVP is a complete indicator light assembly utilized in electrical enclosures and machinery to communicate operational statuses or warnings. Operators rely on these panel signal lights to monitor automation processes and swiftly identify system events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Yellow
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 22.5 mm
  • With front ring (EF006014): No
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
132602
Model Code
M22-L-Y-LED230-BVP
EAN
4015081295371
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.03 kg
Compliances
CE

Features & Functions

Bezel color
Chrome
Bezel material
Other
Lens color
Yellow

General

Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP67/IP69K
Opening diameter
22.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
