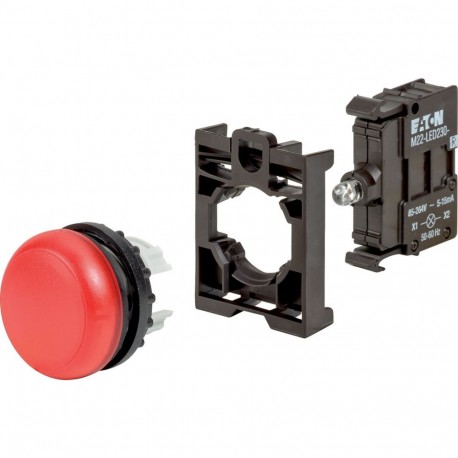

EATON - MOELLER M22-L-R-LED230-BVP M22-L-R-LED230-BVP 132599 Y7-132599 EATON ELECTRIC Indicator light, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-L-R-LED230-BVP 132599 Y7-132599 EATON ELECTRIC Indicator light, complete device

M22-L-R-LED230-BVP

132599

Y7-132599

EATON - MOELLER

1 Pcs.

Indicator light, complete device M22-L-R-LED230-BVP Eaton Moeller® series M22 Indicator light, complete device M22-L-R-LED230-BVP, Blister pack for hanging Indicator light, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller indicator light, designated by part number M22-L-R-LED230-BVP, is a pre-assembled signaling unit mounted on industrial control panels to deliver immediate optical feedback regarding machine cycles or error conditions. These complete devices simplify installation within electrical enclosures and manufacturing equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Red
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 22.5 mm
  • With front ring (EF006014): No
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
132599
Model Code
M22-L-R-LED230-BVP
EAN
4015081295340
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.03 kg
Compliances
CE

Features & Functions

Bezel color
Chrome
Bezel material
Other
Lens color
Red

General

Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP67/IP69K
Opening diameter
22 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
