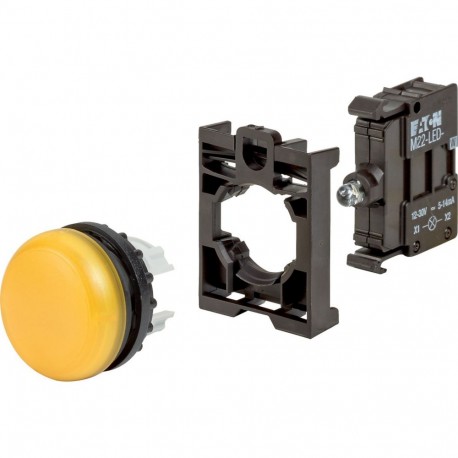

EATON - MOELLER M22-L-Y-LED-BVP M22-L-Y-LED-BVP 110929 Y7-110929 EATON ELECTRIC Indicator lights, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-L-Y-LED-BVP 110929 Y7-110929 EATON ELECTRIC Indicator lights, complete device

M22-L-Y-LED-BVP

110929

Y7-110929

EATON - MOELLER

1 Pcs.

Indicator lights, complete device M22-L-Y-LED-BVP Eaton Moeller® series M22 Indicator lights, complete device M22-L-Y-LED-BVP, Blister pack for hanging Indicator light, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller indicator lights, complete device (part number M22-L-Y-LED-BVP) combines an optical signaling unit with integrated illumination to provide reliable yellow status displays on industrial machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Yellow
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 22.5 mm
  • With front ring (EF006014): Yes
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
110929
Model Code
M22-L-Y-LED-BVP
EAN
4015081104581
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.022 kg
Compliances
CE

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
