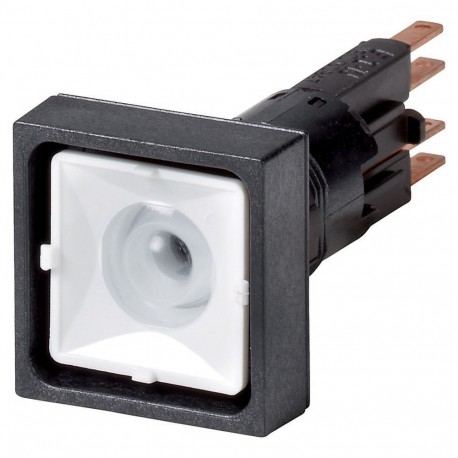

Q25LX 051740 Y7-51740 EATON ELECTRIC Indicator light, without lens
Q25LX
051740
Y7-51740
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Q25LX indicator light, without lens provides a versatile modular base for custom visual signaling applications on control panels. Engineers use bare indicator housings to assemble tailored status lights matching specific color and voltage requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): Flat
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL
IEC/EN 60947-5
CSA File No.: 46552
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
UL 508
CE
Features & Functions
Front ring
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
