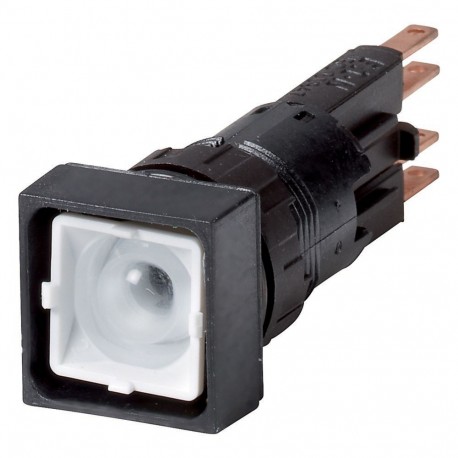

Q18LX 051739 Y7-51739 EATON ELECTRIC Indicator light, without lens
Q18LX
051739
Y7-51739
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q18LX modular indicator light bases without lenses allow custom configuration of optical signaling units for machine control panels and automation equipment. Technicians use these holders to build tailored status display systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): Flat
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL 508
UL Category Control No.: NKCR
UL File No.: E29184
CE
CSA Class No.: 3211-03
IEC/EN 60947-5
CSA
CSA File No.: 46552
CSA-C22.2 No. 14-05
UL
Features & Functions
LED W2x4, 6d, max. 30 V, 1 W
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
