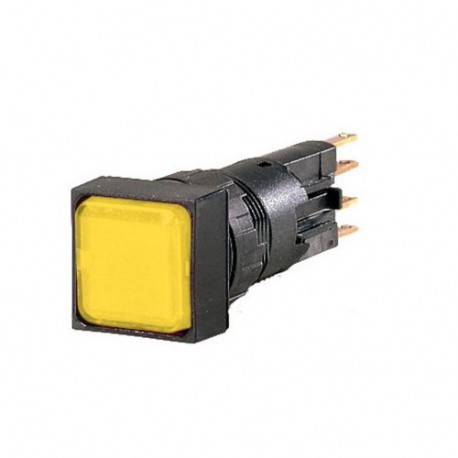

Q18LH-GE/WB 088448 Y7-88448 EATON ELECTRIC Indicator light, raised, yellow, +filament lamp, 24 V
Q18LH-GE/WB
088448
Y7-88448
EATON - MOELLER
10 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller indicator light, raised, yellow, +filament lamp, 24 V (part number Q18LH-GE/WB) serves as an illuminated optical status indicator on electrical control panels, providing clear visual feedback for machine operations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): Yellow
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): High
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
CSA File No.: 46552
CE
UL Category Control No.: NKCR
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947
IEC/EN 60947-5
UL
UL File No.: E29184
Features & Functions
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
