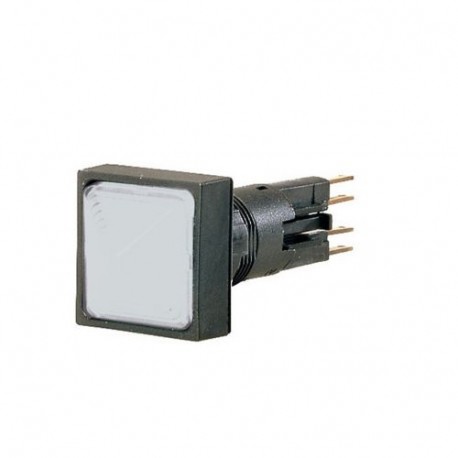

Q18LH-WS/WB 088535 Y7-88535 EATON ELECTRIC Indicator light, raised, white, +filament lamp, 24 V
Q18LH-WS/WB
088535
Y7-88535
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q18LH-WS/WB 088535 Y7-88535 indicator light is a raised white square unit equipped with a 24 V filament lamp. Operators utilize these signal lights in compact control consoles to display active machine functions and system ready states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): White
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): High
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
IEC/EN 60947
IEC/EN 60947-5
UL 508
CSA
CSA Class No.: 3211-03
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
UL File No.: E29184
UL
Features & Functions
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
