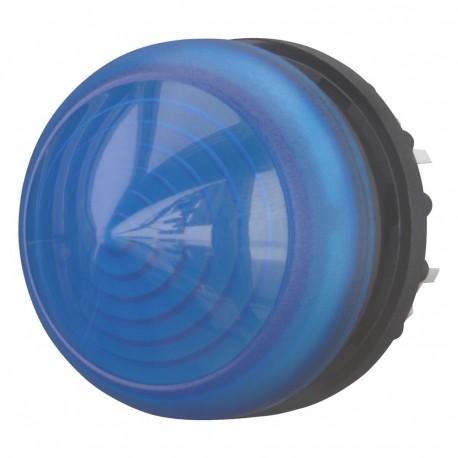

M22-LH-B 216782 Y7-216782 EATON ELECTRIC Indicator light, raised, blue
M22-LH-B
216782
Y7-216782
EATON - MOELLER
10 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller indicator light, part number M22-LH-B, provides prominent visual indication on industrial control panels, switchboards, and automation systems to communicate operational status and event alerts to technicians. The raised lens configuration ensures high visibility from wide angles across factory floors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): Blue
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 22.5 mm
- With front ring (EF006014): Yes
- Colour front ring (EF002429): Chrome
- Type of lens (EF008343): High
- Degree of protection (IP), front side (EF003118): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA-C22.2 No. 94-91
CE
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL 508
VDE 0660
UL
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NKCR
UL File No.: E29184
Features & Functions
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
0.5 - 1.5 mm², stranded
Electrical rating
Communication
With SWD-RMQ connections
