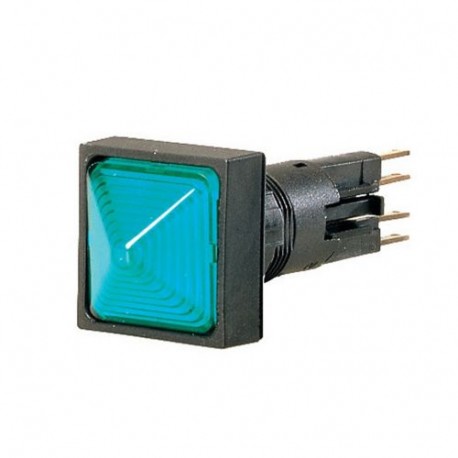

Q18LH-BL 088560 Y7-88560 EATON ELECTRIC Indicator light, raised, blue
Q18LH-BL
088560
Y7-88560
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for raised mounting configurations, the Eaton Moeller Q18LH-BL indicator light, raised, blue offers prominent visual indication on industrial control panels. Raised pilot lights are commonly installed where high visibility from multiple angles is required on machinery operating consoles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): Blue
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): High
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL
CSA File No.: 46552
UL Category Control No.: NKCR
UL File No.: E29184
IEC/EN 60947
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL 508
Features & Functions
LED W2x4, 6d, max. 30 V, 1 W
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
