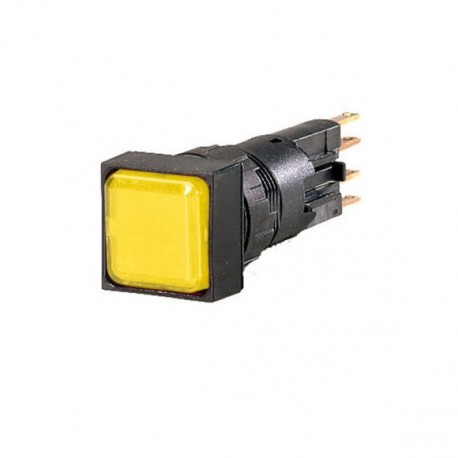

Q18LF-GE 088303 Y7-88303 EATON ELECTRIC Indicator light, flush, yellow
Q18LF-GE
088303
Y7-88303
EATON - MOELLER
10 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller indicator light, flush, yellow (part number Q18LF-GE) is an optical component designed for electrical panels to display specific warnings, cautions, or machine status alerts.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): Yellow
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): Flat
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
CSA File No.: 46552
UL
CE
UL File No.: E29184
CSA
CSA Class No.: 3211-03
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
IEC/EN 60947
Features & Functions
LED W2x4, 6d, max. 30 V, 1 W
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
