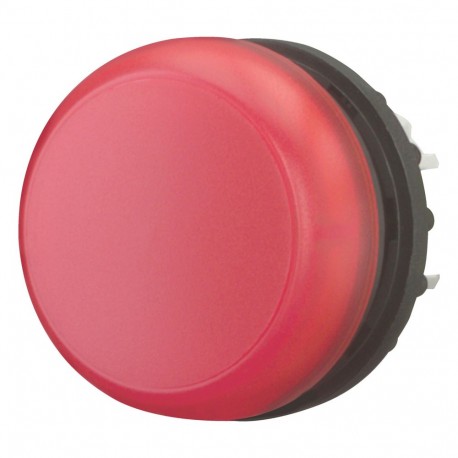

M22-L-R 216772 Y7-216772 EATON ELECTRIC Indicator light, flush, red
M22-L-R
216772
Y7-216772
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-L-R indicator light, flush, red serves as a dependable optical signaling device for industrial control panels and machinery. Engineers integrate red indicator lights into control systems to highlight alarm conditions, emergency states, or process interruptions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series M22 indicator light
- Catalog Number: 216772
- Model Code: M22-L-R
- EAN: 4015082167721
- Product Length/Depth: 30 mm
- Product Height: 30 mm
- Product Width: 30 mm
- Product Weight: 0.007 kg
- Compliances: CE Marked, CE Marked
- Type: Indicator lights
- 10.10 Temperature rise: Not applicable.
- 10.2.2 Corrosion resistance: Meets the product standard's requirements.
- 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
- 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
- 10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
- 10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 indicator light |
| Catalog Number | 216772 |
| Model Code | M22-L-R |
| EAN | 4015082167721 |
| Product Length/Depth | 30 mm |
| Product Height | 30 mm |
| Product Width | 30 mm |
| Product Weight | 0.007 kg |
| Compliances | CE Marked |
| Certifications | IEC 60947-5 UL 508 EN 60947-5 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 VDE CSA File No.: 012528 IEC/EN 60947-5 VDE 0660 UL UL File No.: E29184 CSA Class No.: 3211-03 IEC/EN 60947 UL Category Control No.: NKCR CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 CE CSA |
Product specifications
| Type | Indicator lights |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Front ring |
| Pollution degree | 3 |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Connection to SmartWire-DT | Yes With SWD-RMQ connections |
| Rated impulse withstand voltage (Uimp) | 4000 V AC |
| Bezel color | Chrome |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
| Bezel material | Other |
| Terminal capacity | 0.5 - 1.5 mm², stranded 0.5 - 1.5 mm², solid |
| Lens color | Red |
| Design | Flush |
| Mounting position | As required |
| Overvoltage category | III |
| Degree of protection | NEMA 4X, 13 |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Opening diameter | 22.5 mm |
| Opening height | 22.5 mm |
| Rated insulation voltage (Ui) | 250 V |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Suitable for number of built-in signal lights | 1 |
| Width opening | 0 mm |
| Product category | RMQ-Titan |
| Size | Front diameter: 29.7 mm |
| Degree of protection (front side) | IP67/IP69K |
| Lens type | Round Flat |
