Q25LF-GN 090000 Y7-90000 EATON ELECTRIC Indicator light, flush, green
Q25LF-GN
090000
Y7-90000
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

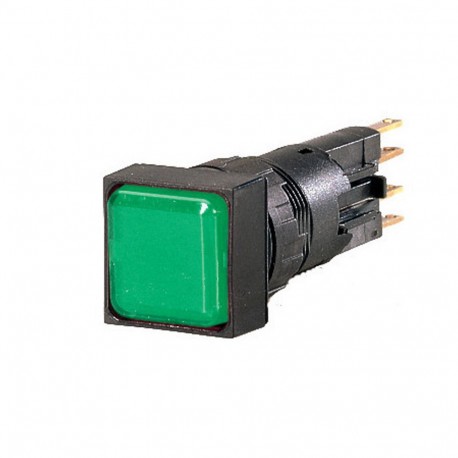

An Eaton Moeller Q25LF-GN indicator light serves as a flush-mounted visual status indicator on industrial machinery control desks and electrical enclosures. Panel builders utilize these units to display safe operation states and equipment readiness. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): Green
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): Flat
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
CSA
IEC/EN 60947-5
CSA File No.: 46552
CSA Class No.: 3211-03
UL 508
UL File No.: E29184
CE
CSA-C22.2 No. 14-05
IEC/EN 60947
UL
Features & Functions
Front ring
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
