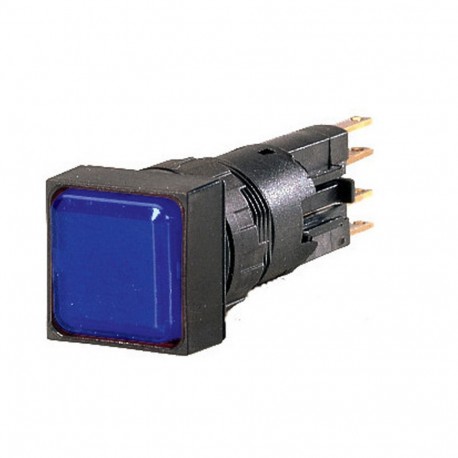

Q18LF-BL 088270 Y7-88270 EATON ELECTRIC Indicator light, flush, blue
Q18LF-BL
088270
Y7-88270
EATON - MOELLER
1 Pcs.
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Q18LF-BL indicator light is a flush panel signaling component used to display operational processes and status changes across automation equipment. Plant floor operators rely on these devices to monitor system conditions seamlessly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of built-in signal lights (EF006669): 1
- Colour lens (EF000207): Blue
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 16 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Type of lens (EF008343): Flat
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
IEC/EN 60947-5
CSA Class No.: 3211-03
CE
CSA File No.: 46552
UL Category Control No.: NKCR
UL
IEC/EN 60947
UL 508
CSA
UL File No.: E29184
Features & Functions
LED W2x4, 6d, max. 30 V, 1 W
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
