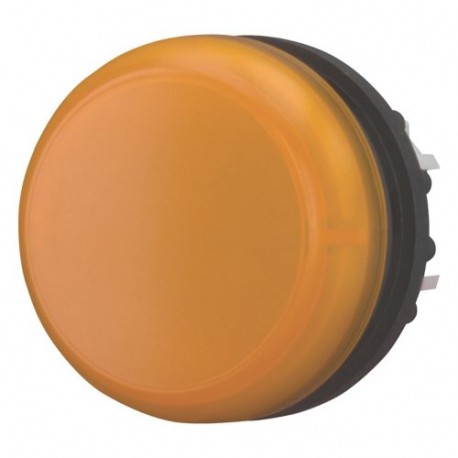

EATON - MOELLER M22-L-A M22-L-A 164374 Y7-164374 EATON ELECTRIC Indicator light, flush, amber View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-L-A 164374 Y7-164374 EATON ELECTRIC Indicator light, flush, amber

M22-L-A

164374

Y7-164374

EATON - MOELLER

10 Pcs.

Indicator light, flush, amber M22-L-A Eaton Moeller® series M22 Indicator light, RMQ-Titan, Flat, orange Indicator light, Product range: RMQ-Titan, Single unit, Design: Flat, Color Lens: orange, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-L-A 164374 Y7-164374 indicator light is a flush amber signaling unit featuring a flat round lens. Automation professionals incorporate these components into control panels to provide clear optical alerts and cautionary status readouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Orange
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 22.5 mm
  • With front ring (EF006014): No
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): Flat
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
164374
Model Code
M22-L-A
EAN
4015081608805
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.007 kg
Compliances
CE Marked
Bureau Veritas
GoST-R
Certifications
CSA Certified
CCC Marked
Lloyd's Register Certified
IEC/EN 60947
VDE 0660
Catalog Notes
Includes contact block mounting adapter.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
