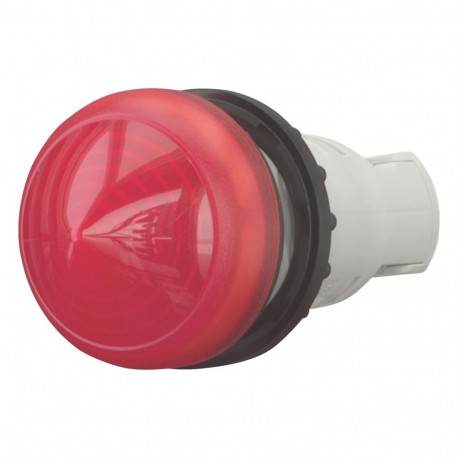

EATON - MOELLER M22-LCH-R M22-LCH-R 216915 Y7-216915 EATON ELECTRIC Indicator light, compact, raised, red View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-LCH-R 216915 Y7-216915 EATON ELECTRIC Indicator light, compact, raised, red

M22-LCH-R

216915

Y7-216915

EATON - MOELLER

1 Pcs.

Indicator light, compact, raised, red M22-LCH-R Eaton Moeller® series M22 Indicator light, RMQ-Titan, Extended, conical, without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Red Indicator light, Product range: RMQ-Titan, Complete unit, Design: Extended, conical, Description: without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Color Lens: Red, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller indicator light, part number M22-LCH-R, serves as a compact visual status indicator on industrial control panels, automation machinery, and electrical distribution equipment. Raised lenses provide heightened visibility across the factory floor to alert operators of system conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights (EF006669): 1
  • Colour lens (EF000207): Red
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 22.5 mm
  • With front ring (EF006014): No
  • Colour front ring (EF002429): Chrome
  • Type of lens (EF008343): High
  • Degree of protection (IP), front side (EF003118): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
216915
Model Code
M22-LCH-R
EAN
4015082169152
Product Length/Depth
57 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.017 kg
Certifications
CE
CSA
UL Category Control No.: NKCR
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947
IEC/EN 60947-5
UL
UL 508
VDE 0660
Catalog Notes
Without light elements
