View larger
Images are for illustrative purposes only. Please refer to data sheet for details

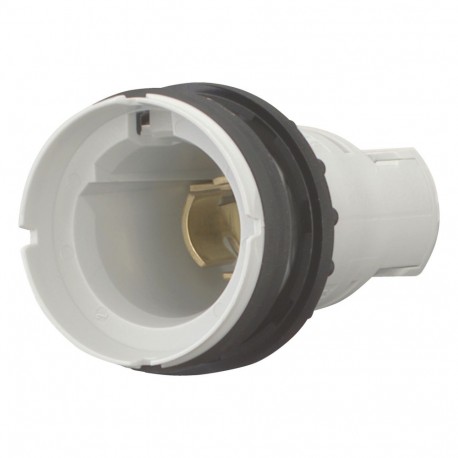

M22-LC-X 216912 Y7-216912 EATON ELECTRIC Indicator light, compact, flush, without lens
M22-LC-X
216912
Y7-216912
EATON - MOELLER
1 Pcs.
Indicator light, compact, flush, without lens
M22-LC-X
Eaton Moeller® series M22 Indicator light, RMQ-Titan, Flush, without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Without lens
Indicator light, Product range: RMQ-Titan, Complete unit, Design: Flush, Description: without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Color Lens: Without lens, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 29,7, Ordering information: Lenses for indicator lights → accessories, Standards: IEC/EN 60947, VDE 0660
Automation > Front element for indicator light
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
216912
Model Code
M22-LC-X
EAN
4015082169121
Product Length/Depth
53 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.017 kg
Certifications
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
UL File No.: E29184
UL 508
CSA
VDE 0660
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 60947-5
UL
CE
IEC/EN 60947
CSA Class No.: 3211-03
UL File No.: E29184
UL 508
CSA
VDE 0660
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 60947-5
UL
CE
IEC/EN 60947
| Feature Name | Feature Value |
|---|---|
| Suitable for number of built-in signal lights (EF006669) | 1 |
| Colour lens (EF000207) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 22.5 mm |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Chrome |
| Type of lens (EF008343) | Flat |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
