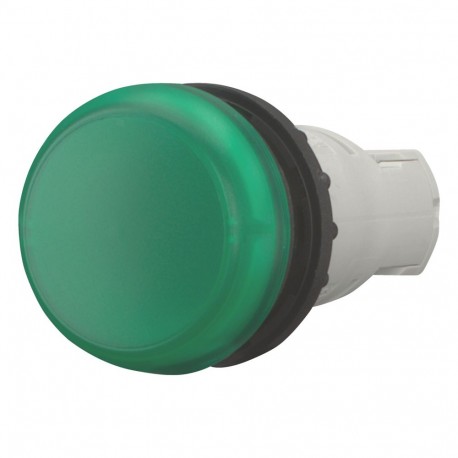

EATON - MOELLER M22-LC-G M22-LC-G 216909 Y7-216909 EATON ELECTRIC Indicator light, compact, flush, green View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-LC-G 216909 Y7-216909 EATON ELECTRIC Indicator light, compact, flush, green

M22-LC-G

216909

Y7-216909

EATON - MOELLER

10 Pcs.

Indicator light, compact, flush, green M22-LC-G Eaton Moeller® series M22 Indicator light, RMQ-Titan, Flush, without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, green Indicator light, Product range: RMQ-Titan, Complete unit, Design: Flush, Description: without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Color Lens: green, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for indicator light
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-LC-G is a compact flush green indicator light tailored for standard 22.5 mm operator panel cutouts. Industrial automation systems utilize flush-mounted green signal lights to indicate normal running conditions, power availability, or successful cycle completion.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of built-in signal lights: 1
  • Colour lens: Green
  • Construction type lens: Round
  • Hole diameter: 22.5 mm
  • Width opening: 0 mm
  • Height opening: 22.5 mm
  • With front ring: No
  • Colour front ring: Chrome
  • Type of lens: Flat
  • Degree of protection (IP), front side: IP67/IP69K
  • Degree of protection (NEMA): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Indicator light
Catalog Number
216909
Model Code
M22-LC-G
EAN
4015082169091
Product Length/Depth
53 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.017 kg
Certifications
IEC/EN 60947
UL
UL 508
CSA File No.: 012528
UL Category Control No.: NKCR
CSA
VDE 0660
CE
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL File No.: E29184
Catalog Notes
Without light elements

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
