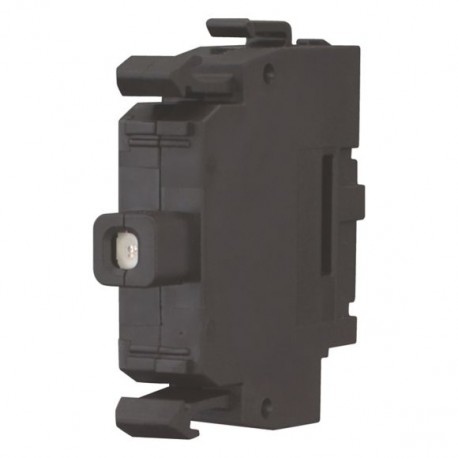

EATON - MOELLER M22-SWD-LED-W M22-SWD-LED-W 115966 Y7-115966 EATON ELECTRIC Illumination function element, SmartWire-DT, LED, white, front.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-LED-W 115966 Y7-115966 EATON ELECTRIC Illumination function element, SmartWire-DT, LED, white, front..

M22-SWD-LED-W

115966

Y7-115966

EATON - MOELLER

1 Pcs.

Illumination function element, SmartWire-DT, LED, white, front mount M22-SWD-LED-W Eaton Moeller® series M22 LED element, for combination with RMQ-Titan operating elements M22-..., Front fixing, white LED element, Fixing: Front fixing, Color: white, Connection to SmartWire-DT: yes

Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Illumination function element designed to provide visual feedback and status indication in industrial control panels. Devices of this type are widely integrated into pushbuttons and pilot devices to signal machine operations, faults, or system readiness. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Transformer integrated: No
  • With integrated voltage decreasing resistor: No
  • With light source: Yes
  • With integrated diode: No
  • Rated voltage Ue at AC 50 Hz: 0 V
  • Rated voltage Ue at AC 60 Hz: 0 V
  • Rated voltage Ue at DC: 30 V
  • Voltage type for actuating: DC
  • Lamp type: LED
  • Connection type auxiliary circuit: Flat plug-in connection
  • Colour light source: White
  • Type of fastening: Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 LED element
Catalog Number
115966
Model Code
M22-SWD-LED-W
EAN
4015081157068
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
CSA
CSA File No.: 2324643
UL Category Control No.: NKCR
CSA Class No.: 3211-07
IEC/EN 61131-2
EN 50178
UL
UL File No.: E29184

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
