View larger
Images are for illustrative purposes only. Please refer to data sheet for details

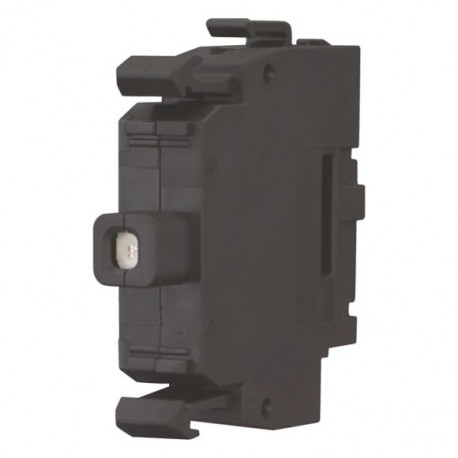

M22-SWD-LED-R 115969 Y7-115969 EATON ELECTRIC Illumination function element, SmartWire-DT, LED, red, front m..
M22-SWD-LED-R
115969
Y7-115969
EATON - MOELLER
1 Pcs.
Illumination function element, SmartWire-DT, LED, red, front mount
M22-SWD-LED-R
Eaton Moeller® series M22 LED element, for combination with RMQ-Titan operating elements M22-..., Front fixing, red
LED element, Fixing: Front fixing, Connection to SmartWire-DT: yes
Automation > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 LED element
Catalog Number
115969
Model Code
M22-SWD-LED-R
EAN
4015081157099
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
CSA Class No.: 3211-07
EN 50178
IEC/EN 61131-2
CSA File No.: 2324643
UL File No.: E29184
UL
UL Category Control No.: NKCR
CSA
EN 50178
IEC/EN 61131-2
CSA File No.: 2324643
UL File No.: E29184
UL
UL Category Control No.: NKCR
CSA
| Feature Name | Feature Value |
|---|---|
| Transformer integrated (EF001358) | false |
| With integrated voltage decreasing resistor (EF001399) | false |
| With light source (EF005905) | true |
| With integrated diode (EF001400) | false |
| Lamp holder (EF000048) | None |
| Rated voltage Ue at AC 50 Hz (EF007029) | 0 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 0 V |
| Rated voltage Ue at DC (EF007031) | 30 V |
| Voltage type for actuating (EF008242) | DC |
| Lamp type (EF002423) | LED |
| Connection type auxiliary circuit (EF006820) | Flat plug-in connection |
| Colour light source (EF001402) | Red |
| Type of fastening (EF002442) | Front fastening |
