View larger
Images are for illustrative purposes only. Please refer to data sheet for details

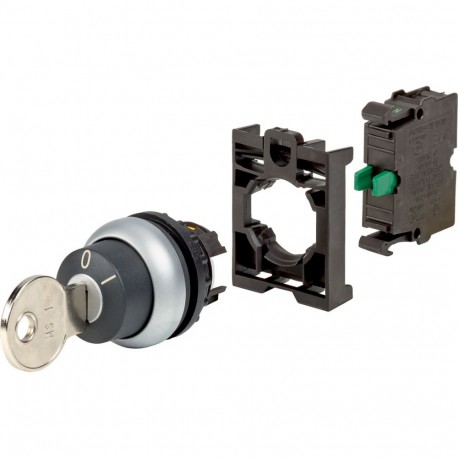

M22-WS-K10-BVP 110921 Y7-110921 EATON ELECTRIC Key-operated buttons, complete device
M22-WS-K10-BVP
110921
Y7-110921
EATON - MOELLER
1 Pcs.
Key-operated buttons, complete device
M22-WS-K10-BVP
Eaton Moeller® series M22 Key-operated actuator, RMQ-Titan, momentary, 2 positions, 1 NO, Blister pack for hanging
Key-operated actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
110921
Model Code
M22-WS-K10-BVP
EAN
4015081104505
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.046 kg
Compliances
CE
Certifications
DNV
GL
LR
GL
LR
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 2 |
| Type of control element (EF006976) | Key |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
