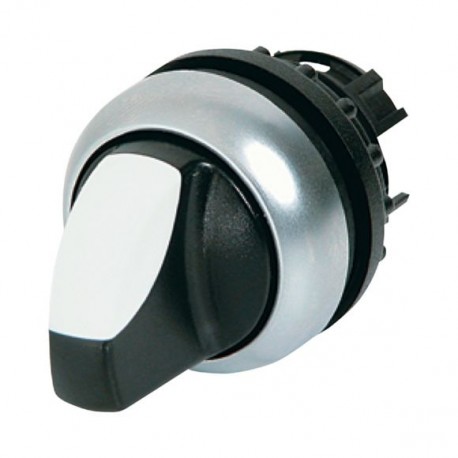

M22-WRK3-* 217436 Y7-217436 EATON ELECTRIC Selector switch, toggle, 3 positions, black, maintained, non-stan..
M22-WRK3-*
217436
Y7-217436
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22-WRK3-* is an Eaton Moeller selector switch equipped with a toggle configuration designed for dependable mechanical control desks. Selector switches direct control circuits and allow operators to choose between multiple automated process workflows.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
UL 508
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 94-91
VDE
CSA
CSA-C22.2 No. 94-91
IEC/EN 60947
VDE 0660
UL
UL Category Control No.: NKCR
UL File No.: E29184
CE
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 14-05
DNV
GL
LR
Features & Functions
Classical
Front ring
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Maintained
