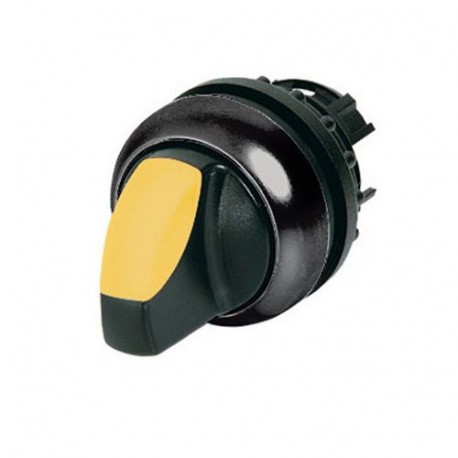

M22S-WRLK3-Y 216850 Y7-216850 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, yellow, main..
M22S-WRLK3-Y
216850
Y7-216850
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An illuminated selector switch actuator combines mechanical control routing with integrated light signals for effective status monitoring. Industrial automation designers specify these toggle units on control panels to direct multi-circuit configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Yellow
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA File No.: 012528
UL File No.: E29184
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CE
IEC/EN 60947-5
VDE 0660
CSA
UL 508
CSA-C22.2 No. 14-05
UL
