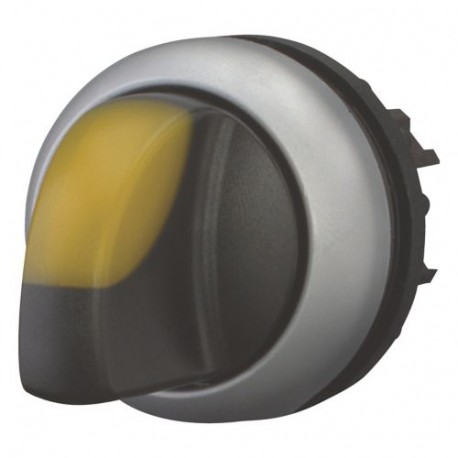

EATON - MOELLER M22-WRLK3-Y M22-WRLK3-Y 216849 Y7-216849 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, yellow, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRLK3-Y 216849 Y7-216849 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, yellow, maint..

M22-WRLK3-Y

216849

Y7-216849

EATON - MOELLER

1 Pcs.

Illuminated selector switch actuator, 3 positions, yellow, maintained M22-WRLK3-Y Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, maintained, 3 positions, yellow, Bezel: titanium Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 3 positions, Color Thumb-grip: yellow, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-WRLK3-Y is an illuminated selector switch actuator designed to combine manual mode selection with visual feedback on control boards. Panel builders use these devices to manage complex multi-state processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): Yellow
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
216849
Model Code
M22-WRLK3-Y
EAN
4015082168490
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 94-91
UL 508
CSA Std. C22.2 No. 14-05
VDE
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947-5
CE
IEC/EN 60947
UL
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
