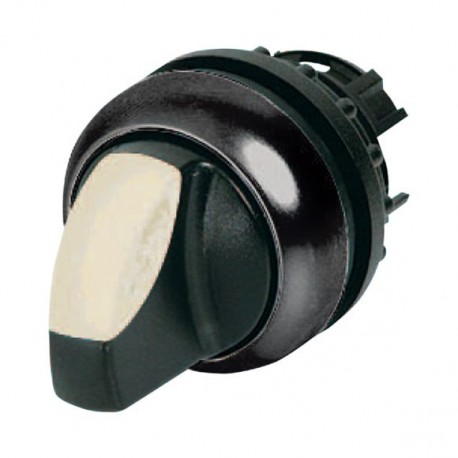

M22S-WRLK3-*/* 217439 Y7-217439 EATON ELECTRIC Illuminated selector switch actuator, 3 positions indiv., mai..
M22S-WRLK3-*/*
217439
Y7-217439
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-WRLK3-*/* is an illuminated selector switch actuator built for mounting on control panels and operator consoles. Illuminated switches provide direct visual feedback of circuit states in industrial automation setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947
CSA Class No.: 3211-03
CSA
CSA-C22.2 No. 94-91
CE
IEC/EN 60947-5
VDE 0660
UL File No.: E29184
CSA-C22.2 No. 14-05
UL 508
UL Category Control No.: NKCR
UL
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Switching function latching
