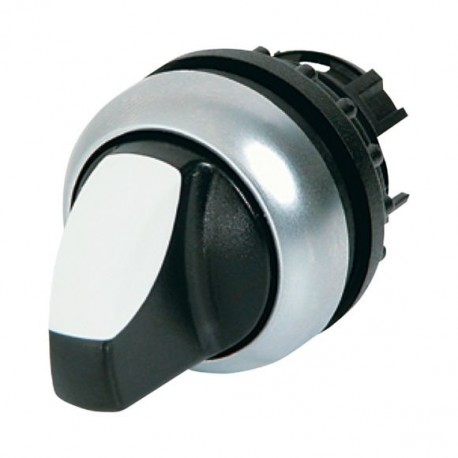

M22-WRLK3-*/* 217438 Y7-217438 EATON ELECTRIC Illuminated selector switch actuator, 3 positions indiv., main..
M22-WRLK3-*/*
217438
Y7-217438
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-WRLK3-*/* illuminated selector switch actuator provides intuitive manual control and status indication on industrial control panels. Operators use selector switches to manage multiple circuit paths and operating configurations in automated systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947-5
VDE 0660
CE
UL 508
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA Class No.: 3211-03
UL
Features & Functions
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Switching function latching
