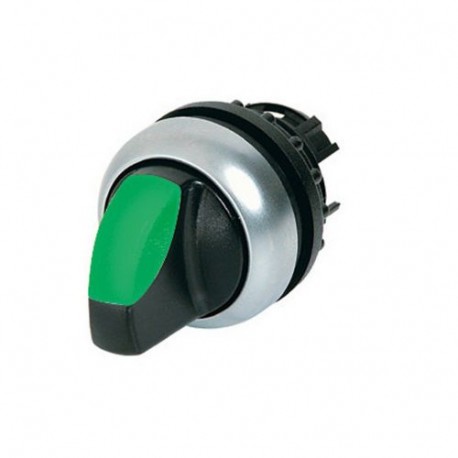

M22-WLK3-G 216837 Y7-216837 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, green, momenta..
M22-WLK3-G
216837
Y7-216837
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-WLK3-G illuminated selector switch actuator is designed for control panels to let operators toggle between multiple circuit states while providing clear visual feedback through an integrated indicator light. Such components are standard in factory automation systems for routing signals or changing operational modes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Green
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
IEC 60947-5
EN 60947-5
CSA File No.: 012528
UL Category Control No.: NKCR
CSA
IEC/EN 60947
CSA Class No.: 3211-03
UL File No.: E29184
VDE 0660
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
UL
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Momentary
