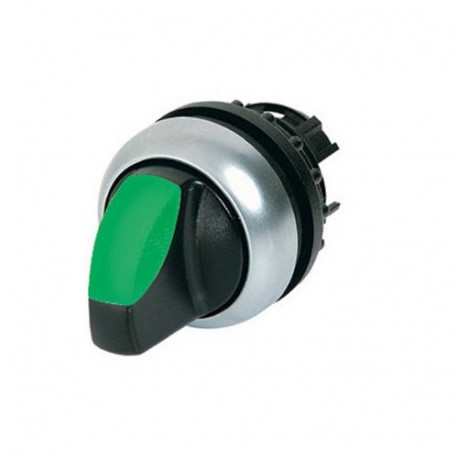

M22-WRLK3-G 216847 Y7-216847 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, green, mainta..
M22-WRLK3-G
216847
Y7-216847
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number M22-WRLK3-G is an illuminated selector switch actuator built to provide clear visual feedback and manual control in automated environments. These operators are integrated into electrical distribution enclosures and control consoles to manage multi-step processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series M22 Illuminated selector switch actuator
- Catalog Number: 216847
- Model Code: M22-WRLK3-G
- EAN: 4015082168476
- Product Length/Depth: 46 mm
- Product Height: 30 mm
- Product Width: 30 mm
- Product Weight: 0.013 kg
- Compliances: CE Marked
- Bezel color: Titanium
- Bezel material: Plastic
- Color: Black Green
- Design: With thumb-grip
- Fitted with:: Front ring
- Functions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Accessories: Thumb grip
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 Illuminated selector switch actuator |
| Catalog Number | 216847 |
| Model Code | M22-WRLK3-G |
| EAN | 4015082168476 |
| Product Length/Depth | 46 mm |
| Product Height | 30 mm |
| Product Width | 30 mm |
| Product Weight | 0.013 kg |
| Compliances | CE Marked |
| Certifications | CSA Std. C22.2 No. 94-91 IEC 60947-5 UL 508 CSA Std. C22.2 No. 14-05 EN 60947-5 VDE CSA UL UL Category Control No.: NKCR CSA File No.: 012528 VDE 0660 CE UL File No.: E29184 CSA-C22.2 No. 14-05 IEC/EN 60947 CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 IEC/EN 60947-5 |
Features & Functions
| Bezel color | Titanium |
| Bezel material | Plastic |
| Color | Black Green |
| Design | With thumb-grip |
| Fitted with: | Front ring |
| Functions | Stay-put/spring-return function, can be changed with coding parts M22-XC-Y |
General information
| Accessories | Thumb grip |
| Degree of protection | NEMA 4X, 13 |
| Degree of protection (front side) | IP66 |
| Lifespan, mechanical | 100,000 Operations |
| Opening diameter | 22.5 mm |
| Operating frequency | 2000 Operations/h |
| Operating torque | 0.3 Nm |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product category | RMQ-Titan |
| Product category | RMQ-Titan |
| Size | Front diameter: 29.7 mm |
| Suitable for | Illumination |
| Switching angle | 60 ° |
| Type | Illuminated selector switch actuator |
Ambient conditions, mechanical
| Mounting position | As required |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 70 °C |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
Communication
| Connection to SmartWire-DT | With SWD-RMQ connections Yes |
Actuator
| Actuator color | Black |
| Actuator function | Switching function latching Maintained |
| Actuator type | Toggle |
| Number of switch positions | 3 |
Contacts
| Force for positive opening - min | 0 N |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
