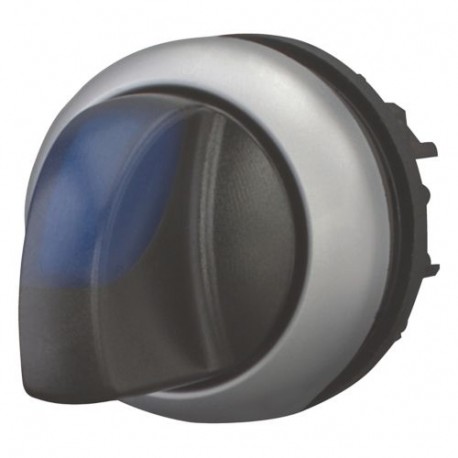

M22-WLK3-B 216841 Y7-216841 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, blue, momentary
M22-WLK3-B
216841
Y7-216841
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller illuminated selector switch actuator, item M22-WLK3-B, offers visual status feedback and manual multi-position control for industrial control boards. Panel operators rely on illuminated switches to easily switch between operating modes while instantly confirming system status in low-light environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Blue
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
EN 60947-5
CSA Std. C22.2 No. 94-91
IEC 60947-5
UL 508
VDE
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL File No.: E29184
VDE 0660
CSA File No.: 012528
CE
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
CSA
IEC/EN 60947
Features & Functions
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Momentary
