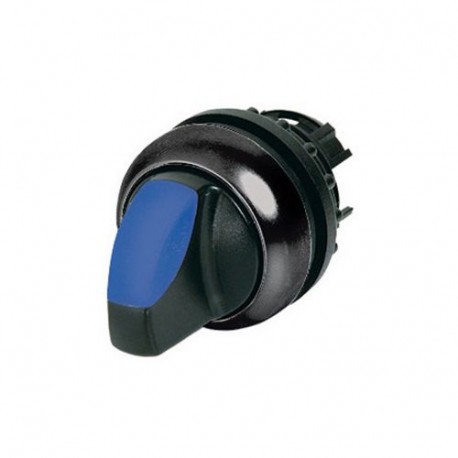

EATON - MOELLER M22S-WRLK3-B M22S-WRLK3-B 216852 Y7-216852 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, blue, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WRLK3-B 216852 Y7-216852 EATON ELECTRIC Illuminated selector switch actuator, 3 positions, blue, mainta..

M22S-WRLK3-B

216852

Y7-216852

EATON - MOELLER

1 Pcs.

Illuminated selector switch actuator, 3 positions, blue, maintained M22S-WRLK3-B Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, maintained, 3 positions, Blue, Bezel: black Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 3 positions, Color Thumb-grip: Blue, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Crafted by Eaton Moeller, part number M22S-WRLK3-B is an illuminated selector switch actuator designed for multi-position command tasks. Industrial automation systems use these devices to provide clear optical feedback and reliable manual switching for machine operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): Blue
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
216852
Model Code
M22S-WRLK3-B
EAN
4015082168520
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CE
VDE 0660
CSA
IEC/EN 60947-5
UL 508
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
UL
UL File No.: E29184
IEC/EN 60947
CSA Class No.: 3211-03
DNV
GL
LR
