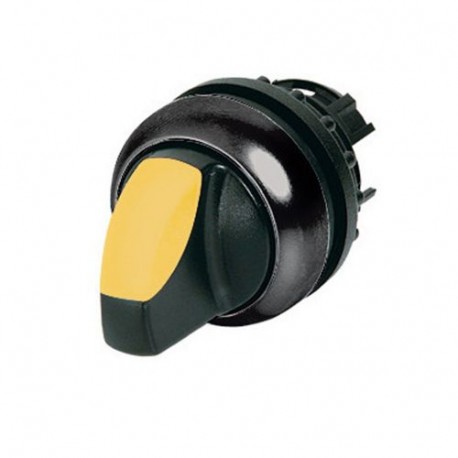

EATON - MOELLER M22S-WLK-Y M22S-WLK-Y 216819 Y7-216819 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, yellow, moment.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WLK-Y 216819 Y7-216819 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, yellow, moment..

M22S-WLK-Y

216819

Y7-216819

EATON - MOELLER

1 Pcs.

Illuminated selector switch actuator, 2 positions, yellow, momentary M22S-WLK-Y Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, momentary, 2 positions, yellow, Bezel: black Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 2 positions, Color Thumb-grip: yellow, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated selector switch actuator offers operators both functional circuit control and prominent visual feedback on control consoles. This unit combines a spring-return toggle with a bright indicator cap for intuitive machine interaction. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): Yellow
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
216819
Model Code
M22S-WLK-Y
EAN
4015082168193
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA
UL File No.: E29184
IEC/EN 60947
UL
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947-5
VDE 0660
UL 508
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
