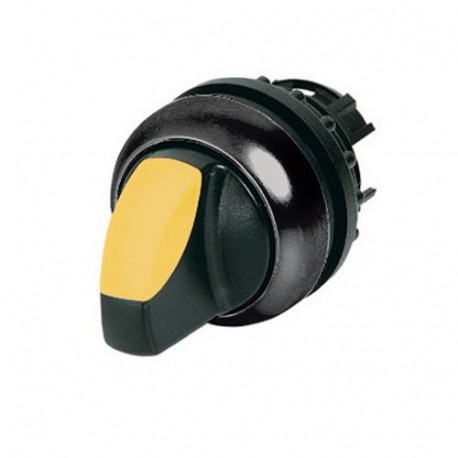

M22S-WRLK-Y 216830 Y7-216830 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, yellow, maint..
M22S-WRLK-Y
216830
Y7-216830
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22S-WRLK-Y Eaton Moeller illuminated selector switch actuator serves as an operator control interface that directs electrical circuits and illuminates to show active machine states. Such switches are widely deployed on industrial automation panels for reliable mode selection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Yellow
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
VDE
CSA
CSA Class No.: 3211-03
IEC/EN 60947-5
IEC/EN 60947
UL
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184
VDE 0660
UL Category Control No.: NKCR
CE
CSA-C22.2 No. 94-91
Features & Functions
Black
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Switching function latching
