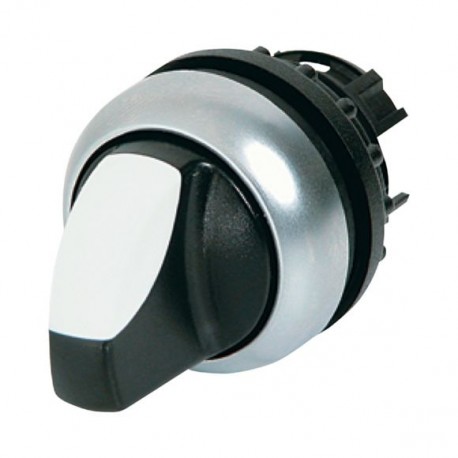

EATON - MOELLER M22-WLK-W M22-WLK-W 216812 Y7-216812 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, white, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WLK-W 216812 Y7-216812 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, white, momentary

M22-WLK-W

216812

Y7-216812

EATON - MOELLER

5 Pcs.

Illuminated selector switch actuator, 2 positions, white, momentary M22-WLK-W Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, momentary, 2 positions, White, Bezel: titanium Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 2 positions, Color Thumb-grip: White, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller illuminated selector switch actuator provides manual control routing for industrial machinery, allowing operators to switch between operational modes on control desks. The toggle mechanism integrates into standard panel cutouts to manage electrical control pathways safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): White
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
216812
Model Code
M22-WLK-W
EAN
4015082168124
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
VDE
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947
CSA File No.: 012528
UL File No.: E29184
UL
UL Category Control No.: NKCR
CE
CSA
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947-5
