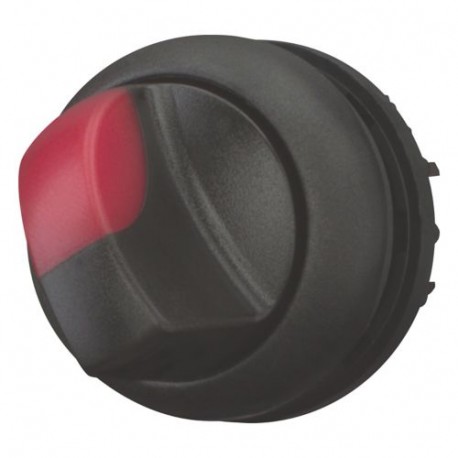

M22S-WLKV-R 284399 Y7-284399 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, red, momentary
M22S-WLKV-R
284399
Y7-284399
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller illuminated selector switch actuator (M22S-WLKV-R) combines visual status indication with manual mode selection, allowing operators to easily identify and switch between machine operating states on complex control panels. These units are commonly deployed in automated manufacturing lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Red
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
UL File No.: E29184
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA
UL
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA Class No.: 3211-03
IEC/EN 60947
DNV
GL
LR
Product specifications
Switching function latching
Damp heat, constant, to IEC 60068-2-78
With SWD-RMQ connections
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Classical
