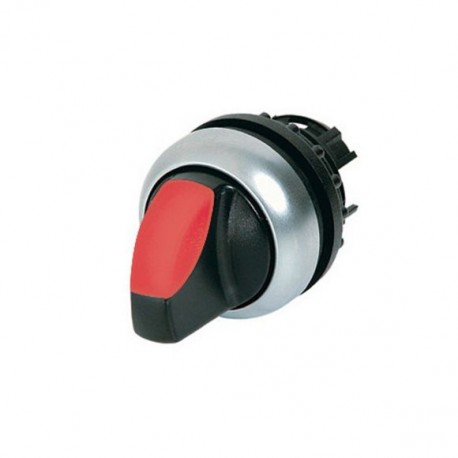

M22-WLK-R 216814 Y7-216814 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, red, momentary
M22-WLK-R
216814
Y7-216814
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-WLK-R illuminated selector switch actuator is a control device utilized on industrial enclosures to switch between machine operating states. The integrated red lens offers clear visual confirmation of the active control status to plant operators.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Red
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
EN 60947-5
UL 508
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
CE
CSA-C22.2 No. 14-05
VDE 0660
CSA File No.: 012528
IEC/EN 60947
CSA Class No.: 3211-03
UL
UL File No.: E29184
CSA
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
