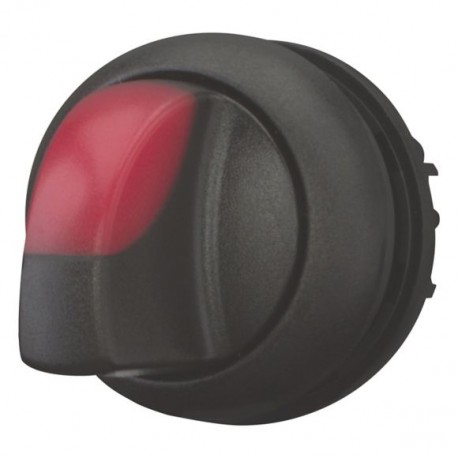

M22S-WRLK-R 216826 Y7-216826 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, red, maintain..
M22S-WRLK-R
216826
Y7-216826
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22S-WRLK-R 216826 Y7-216826 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, red, maintain.. serves as a robust operator device combining manual toggle switching with clear visual indication on industrial panels. These illuminated switches provide reliable command over electrical equipment in demanding manufacturing environments. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Red
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947-5
UL
UL 508
VDE 0660
CSA
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
IEC/EN 60947
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CE
Features & Functions
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
