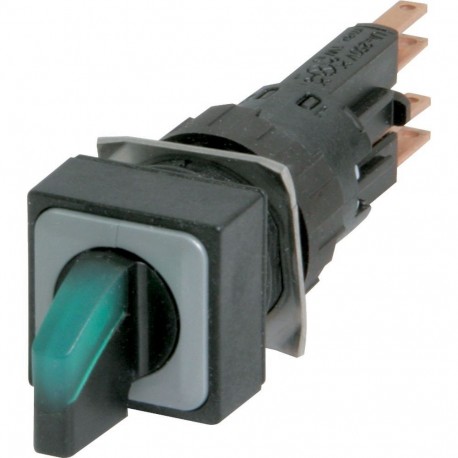

Q18LWK1R-GN 040350 Y7-40350 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, green, maintai..
Q18LWK1R-GN
040350
Y7-40350
EATON - MOELLER
10 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller illuminated selector switch actuator, part number Q18LWK1R-GN, provides reliable operator control and status indication on compact industrial panels. Operators utilize this unit to manually manage electrical circuits while benefiting from clear visual feedback in automated workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Green
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
IEC/EN 60947
UL
CSA File No.: 46552
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL File No.: E29184
CSA
CSA Class No.: 3211-03
CE
UL Category Control No.: NKCR
Features & Functions
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Maintained
